• This is the machien for corrugating the papersheet.
• The design principle of corrugated roll under the pressure roll is to have lower center of gravity for reduce noise and vibration during operation to have smooth and stable machine running, also more safety, facility and quick when changing the cassette rolls.
• The Pressure type design is when pressurized air in the sealed chamber evenly holds the flute paper against the corrugated roll surface to have perfect forming, and glue will be applied evenly for perfect lamination.
• The design of auxiliary pressure roll makes it suitable for different paper and product and production speed, and reduce the pressuring mark caused by over press from the pressure roll or when running with lower grammage paper to increase the paper strength.

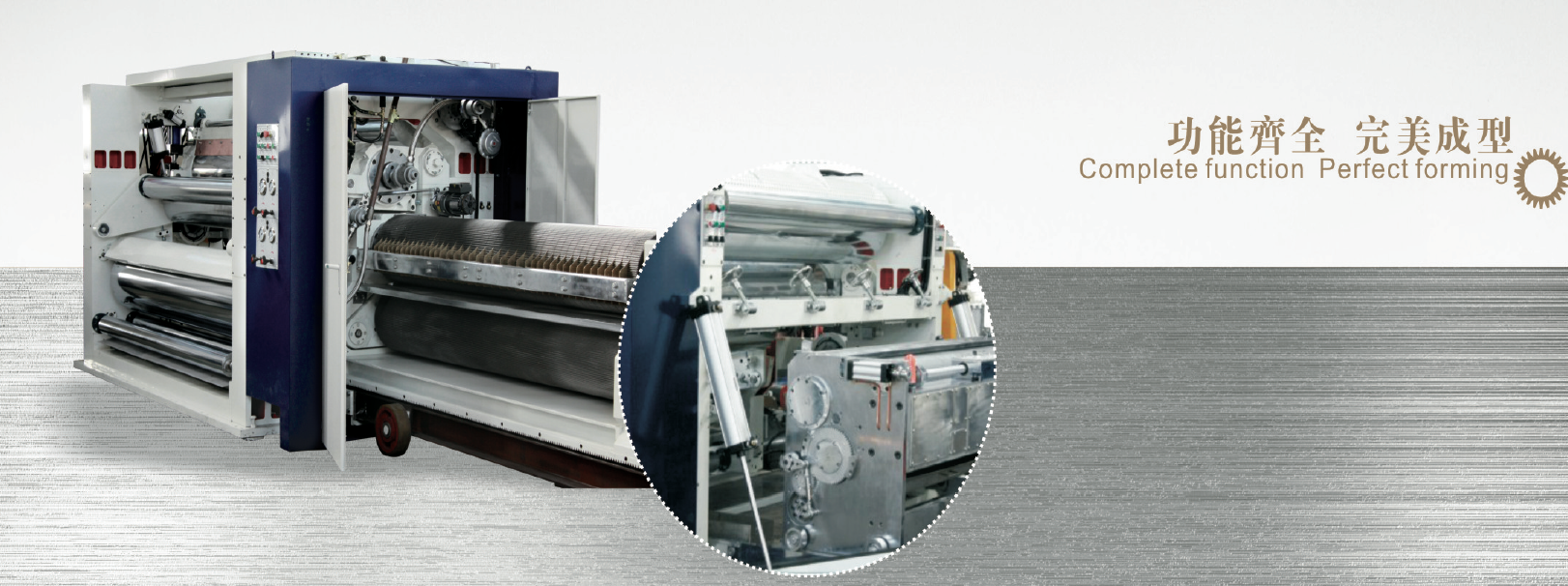

• 15 minutes for quickly change corrugated roll. Corrugated roll set cartridge is carried by electric trolley, after move into Single Facer will be locked fixes by hydraulic power automatically. Roll change is easy and fast by press few buttons only without other tool.
• Improved gluing system makes glue roll and doctor roll cover the glue plate space. The doctor roll soaks in the glue for even applying and rotating with glue roll in different tangent velocity to have stable and even glue thickness on the glue roll surface, then to have smooth flat corrugated board.
• Simple operation control system is one of KSF-35P feature with color touch panel to display running status, functions selection, failure display, troubleshooting guiding, parameter setting ... etc, all to represent the machine's complete fully equipped functions with user-friendly and simply.

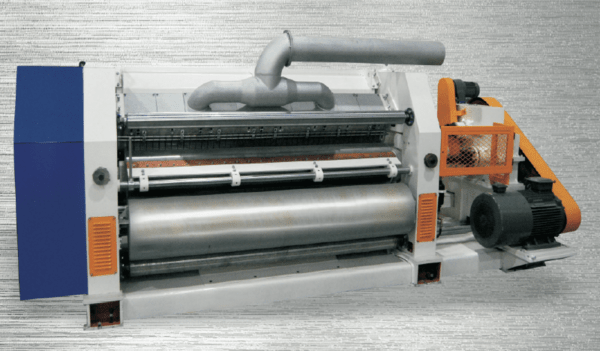

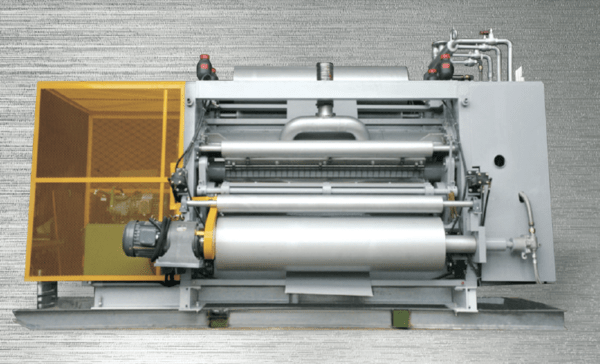

Fingerless Suction Type

SF15Q: Flute Roll diameter 280, Designed speed: 150 M/minute

SF20Q: Flute Roll diameter 320, Designed speed: 200 M/minute

All Machine of Hydraulic Operation

Both (top and bottom) Flute Rolls of Nickel Chromium Molybdenum alloy steel with heat treatment of hardness HS70 up, (Carbon Tungsten of surface treatment could be done as requested)

Pressure Roll of Carbon Steel with heat treatment of hardness HS55 up

Both (top and bottom) Flute Rolls Assembly as a set sent into machine by track, positioned , loaded unloaded and changed expeditiously with hydraulic cassette.

Gluing Part connected with main machine by independent motor and the glue roll could also be idling when the machine stopped.

Gluing Part Assembly is in and out independently for cleaning as easy maintenance •

With electrical glue-separation device

The heart of the corrugator line. The speed effect the production volume.
